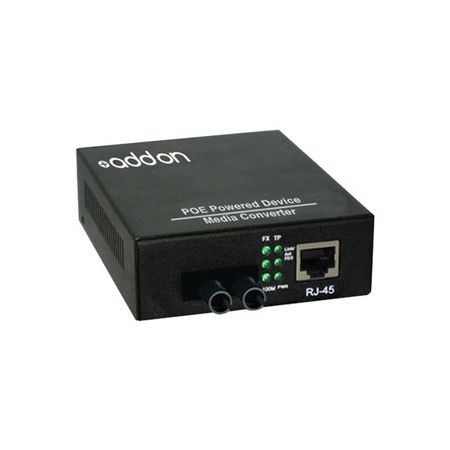

AddOn 100Base-TX To 100Base-LX ST SM 1310nm POE Pwd Media Converter Item # 667188
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
667188
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
This is a media converter that converts a 10/100Base-TX(RJ-45) to 100Base-LX(ST) via a 1310nm single-mode fiber (SMF) ST connector, which allows distance reach up to 20km. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-LX fiber, while extending the network reach beyond the 100m reach limitation of copper. This product series of media converters allows two types of network segments to be connected easily. The DC/DC powered PoE media converter is a powered device (PD) that complies with IEEE802.3af standard, which combines data transferred over a fiber optic link with a DC/DC converter, accepting power from IEE802.3af Power Sourcing Equipment (PSE) over CAT5 and up UTP cable (cable length up to 100 meters/330 feet). Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution for all of your network upgrade needs.
Product Details
| Item # | 667188 |
| Manufacturer # | PD6653 |
| Power Over Ethernet (PoE) | PoE |
| Ethernet Technology | Fast Ethernet |
| height | 1 in. |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | IEEE 802.3; IEEE 802.3ab; IEEE802.3af; IEEE 802.3z; IEC 60825-1; IEC 60825-2 |
| Fiber Optic Cable Standard | 9/125 µ m |
| width | 3 in. |
| depth | 4 in. |
| Product Name | 100Base-TX To 100Base-LX ST SM 1310nm POE Pwd Media Converter |
| Number of ST Ports | 1 |
| manufacturer | AddOn |
| weight | 3.20 oz |
| Maximum Distance Supported | 12.43 Mile |
| brand name | AddOn |
| USB | No |
| Digital Audio/Video | No |
| Digital Audio | No |
| Input Voltage | 48 V DC |
| Network (RJ-45) | Yes |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Total Number of Ports | 2 |
| DVI | No |
| Management Port | No |
| Parallel Port | No |
| Fiber Mode Supported | Single-mode |
| form factor | External |
| warranty length | 3-year limited |
| Network Technology | 10/100Base-TX; 100Base-LX |
| Show More ▾ |
